UWBTech Completes Testing of a UWB Array

1.02 × 1.02 inches Unit Cell
Frequency Demonstration Completed
  • VSWR less than 1.2 from 2 – 5.5 GHz;
  • Dual Polarization
  • 2 – 5.5 GHz
  • Total structure thickness < 3 inches;
    1.02 × 1.02 inches Unit Cell
  • Frequency and dimension scalable
  • Flat and curved surfaces
  • Near Ideal aperture gain

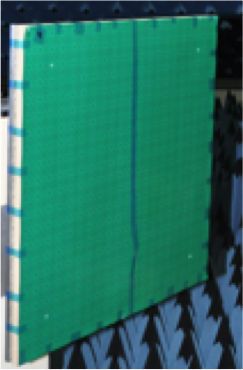

The Ultra Wideband Center of Excellence at Georgia Tech (UWBTech) has recently completed a demonstration-test of a UWB array antenna design which is a candidate aperture as a high power radiator. The demonstration showed design-measurement agreement over the designed frequency ranges (2-5 and 9.2-9.5 GHz). The design will be frequency-dimensionally scaled to be a candidate for a larger low frequency array (similar to the one pictured on the right) in the 2013-2014 time frame. Performance highlights of the current antenna are shown on the left.
